Emergency Downlight 6W 700LM 90 Minutes Recessed & Celling mounting for Commercial and Business UL Listed

LPU-LA02

> The 2-in-1 design supports both recessed and ceiling-mounted installations.
> The lamp body is made of V0-grade fire-retardant PC material (the ceiling frame is made of metal).
> It uses safer lithium iron phosphate batteries and has complete overcharge and over-discharge protection.
> In the event of a mains power outage, it provides 90 minutes of 700lm emergency lighting.
> Its minimalist geometric aesthetics are suitable for any style of interior design
> Making it the best choice for emergency lighting in hospitals, shopping malls, offices, airports, and shops

Quantity:

Contact Now

add to cart

Company Name

Phone

Country

Message Content

KEY FEATURES

2 in 1 desgin,support recessed and surface mounting

90 Minutes emergency illumination operation

Round or oval optic lens optional

Built-in LED status indicator and test button

Monthly 3 minutes and Annual 1.5H self-test

Long-life, maintenance-free lithium battery

Flame retardant, impact resistant thermoplastic

Meets CE, UL, EAC, RoHS certification

SPECIFICATIONS

Model:LPU-LA02

Voltage:100-347VAC 50/60Hz

Mount Type:Celling / Recessed

Battery:LiFePO4 9.6V

Conformity:CE, EAC, RoHS

Test Mode:Auto / Bluetooth

Product Type:Emergency led downlight

Light Emission:Standard

Power:6W

Luminous Flux:700LM

Emergency Time:≥ 1.5H

Warranty:5 Years

ORDER GUIDE

Model	Input Voltage	Mounting	Power	Lumens	EM Time	Test Mode
LPV-LD02-IP-6W	100-347VAC	Surface	6W	700lm@5000K	≥1H/2H/3H	AT/MT/DALI/BT

Test mode explain: MT=Manual Test, AT=Auto Test, DALI=DALI Test, BT=Bluetooth Wireless Test.

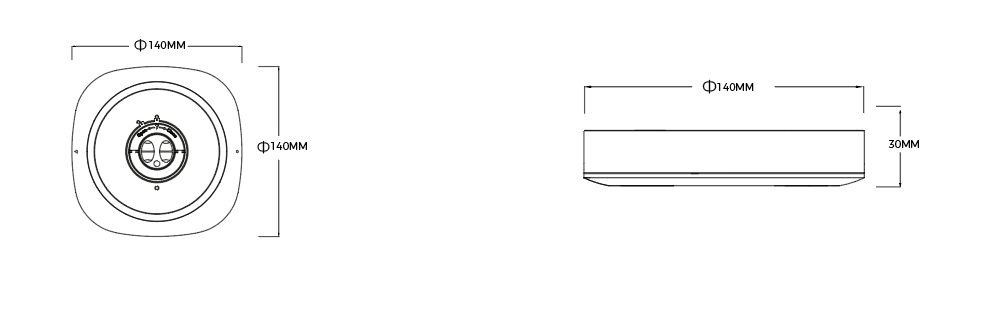

DIMENSIONS

SELF TEST MODE

The integrated Self-Test/Diagnostic circuitry will automatically conducts monthly 30 seconds and annual 90 minutes test to verify proper emergency capability per Life Safety Code requirements. NFPA 101 Life Safety Code Outlines the following schedule:

Check battery, lamp ,charge board and transfer fault all the time.
Monthly- During AC mode, the fixture conducts a 30 seconds self-discharge test every 30 days.
Annually- During AC mode, the fixture conducts a 90 minutes self-discharge test every 365 days.

TEST BUTTON

Explain	Function
Press once within 2 seconds	Run 10 seconds duration test
Press twice within 2 seconds	Run 30 seconds duration test
Press thrice within 2 seconds	Run 90 minutes duration test
Press once and wait >2S then press again	Light turned off. Indicator will turn green and back to charging mode
Under emergency mode, Long press the test button for >3s	Turn off the light

NOTE: The manual test function needs to connect the battery and plug in the AC power for use.

INDICATOR

Explain	Function
Slow Flash with green color	Discharging/Emergency mode
With green color all the time	Charging battery
The indicator light is off	The battery is fully charged
Fast Flash with green color	Failure

NOTE: When the fault is cleared, long press the test button for 2 seconds, The led indicator will turn green and the fixture is back to normal.
