LED emergency downlight

LPV-LD01-LFP-AT-W-3H-550lm
Single battery emergency light with 3 hour emergency light duration for
Cantidad:
enviar contacto
Añadir al carrito
LPV-LD01
Product description
-----------------------------------------------------------------------
●Single battery emergency light with 3 hour emergency light duration for
 recessed ceiling mounting with self-control feature(sc) and fail-safe contact
 (optens if power fails)

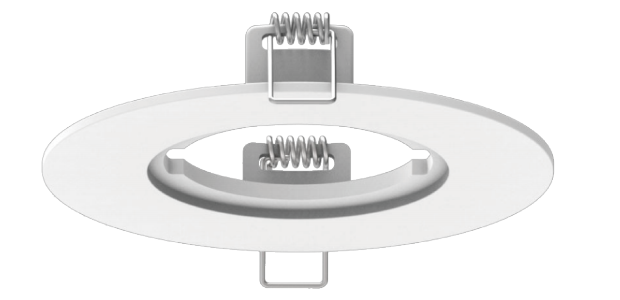

 Emergency downlight Trim 140mm
● 140mm trim for different cuthole applications.

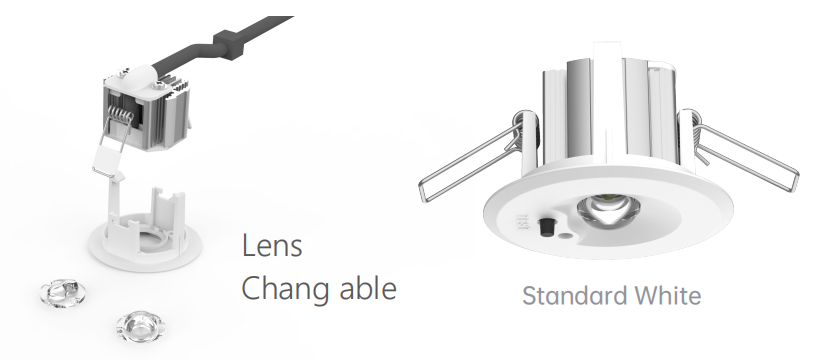

● Round lens for open area, oval lens for escape route.
● LiFePO4 battery, long life time.
● AT/MT/DALI test function.

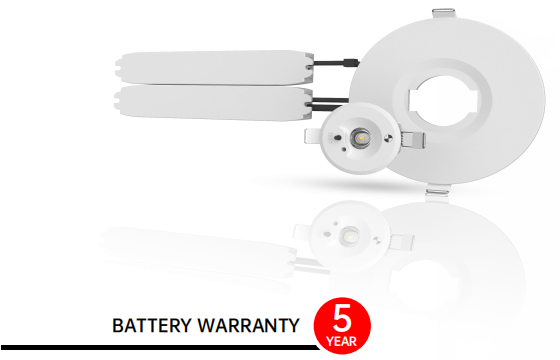

● Modular design, easy to replace each module.
● Full compliant (AS/NZS 2293).

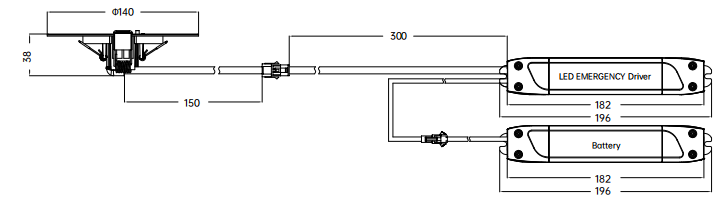

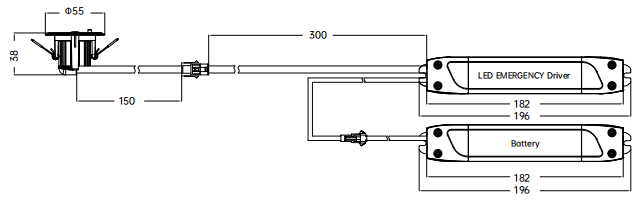

Dimension: mm
55mm trim plate:

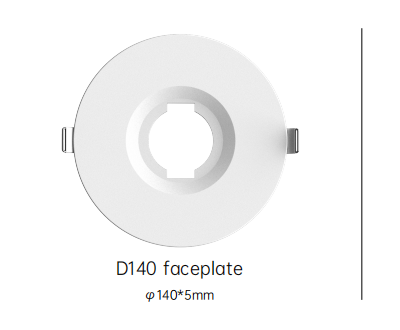

140mm trim plate:
Technical data
GENERAL

ATTACHMENT
Device category :
Conformity :
Warranty :
Colour :
Emergency led downlight
CE, EAC, RoHS
5/3/2 years
white/black
nstallation type :
Installation position :
Installation dimension :
Type of connection :
Connectable wire cross section :
Recessed mounting
Ceiling
Installation length: 42/70/105mm
Installation depth: 30 mm, Ø 50 mm
Push terminal
1.5 - 2.5 mm²
ELECTRICALVERSION
Control system :
Protection class :
Nominal voltage :
ON/OFF
 II
200-240VAC, 50/60Hz
LIGHT
EMERGENCY LIGHTING
Light emission :
Rated output Power :
Luminous flux :
Luminous efficacy :
Colour temperature :
Standard lens and corridor lens
3W max
300lm
100 lm/W
4000 K/Ra80
Light duration :
Switching type :
Power feed :
Battery :
Charging time :
Status display :
Test model :
3 h
Continuous mode/standby mode
Decentralised (single-battery)
LiFePO4 6.4V 1500mAh
24 hours min
by LED
AT/MT/DALI
HOUSING
Dimensions :
Weight :
Material :
Protection type :
Permissible ambient temperature :
Relative humidity :
Height/Depth 30 mm, Ø 50 mm
320 g
PC/Aluminium
IP30
0 °C...+45 °C
5 - 95 %, non-condensing
Model List
Model
DimensionVoltageIp RatingCCT/CRICharge
Time		Discharge
Duration		BatteryLumen
Output		Emergency
Power		Color
LPV-LD01-LFP-AT-1H
Ø55*38mm
200-240V
IP20
5000K/70
24H
1H
LiFePO4 6.4V
600mAh
260lm
1.7w
WH/BK/SL
LPV-LD01-LFP-MT-1H1H
LiFePO4 6.4V
600mAh
LPV-LD01-LFP-AT-2H
2H
LiFePO4 6.4V
1500mAh
300lm
2.4w
LPV-LD01-LFP-MT-2H
2H
LiFePO4 6.4V
1500mAh
LPV-LD01-LFP-AT-3H
3H
LiFePO4 6.4V
1500mAh
260lm
1.7w
LPV-LD01-LFP-MT-3H
3H
LiFePO4 6.4V
1500mAh
LPV-LD01-LFP-DA-1H
1H
LiFePO4 6.4V
600mAhh
260lm
1.7w
LPV-LD01-LFP-DA-2H2H
LiFePO4 6.4V
1500mAh
300lm
2.4w
LPV-LD01-LFP-DA-3H3H
LiFePO4 6.4V
1500mAh
260lm
1.7w

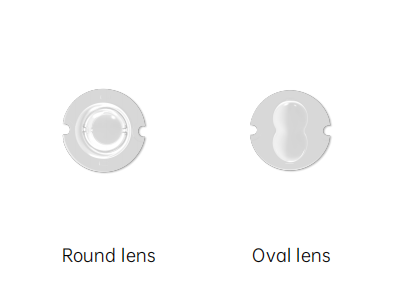

Accessories

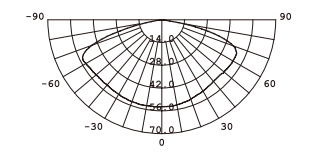

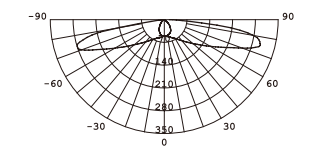

Photometric data
Oval lens for pathway application
Round lens for open area application
Beam angle: 136 x 54︒
Beam angle: 136︒

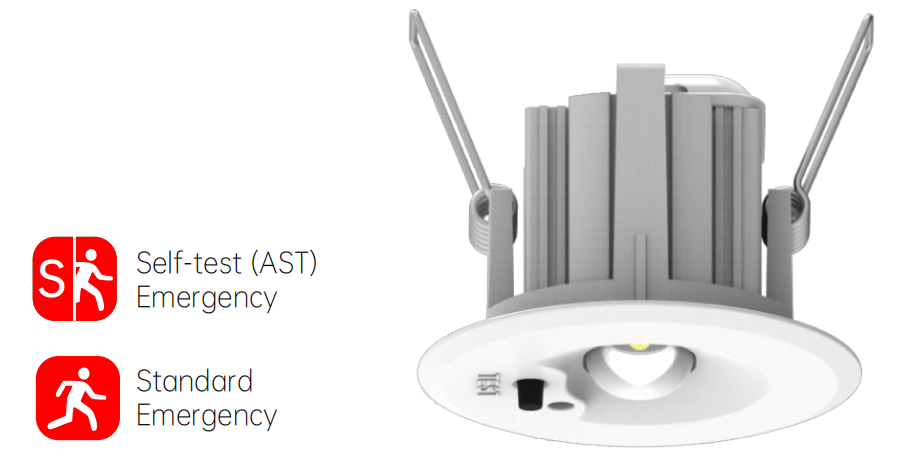

LED Indicator( Self-test version)
Instruction for Automatic test function
Once the unit is powered up, a self-diagnostics test will be automatically initiated:
• Check battery, lamp, charge board and transfer fault all the time.
• Run 3mins duration test every month.
• Run 1H or 3H duration test every year.
Note:All test functions are preset and no need field adjustment.

LED indicator
LED indication
system status


Button diagram
Button test
system status
Green indicator solid onReady/ Normal Operation

Press test button once run a 30s duration test
Red indicator flashesRequire service

Press test button twice within 2s run a 3mins duration test
One flash, 4s pauseBattery disconnected

Press test button 3 times within 2s run a 30mins duration test
Two flashes, 4s pauseLow battery voltage

Press test button 4 times within 2srun a 1H or 3H duration test
Five flashes, 4s pause

LED lamp fault

Note:When the fault is recovered,press the test button for 2s,the red flashing indicator will turn green.
The fault is cleared, and the unit is back to normal.

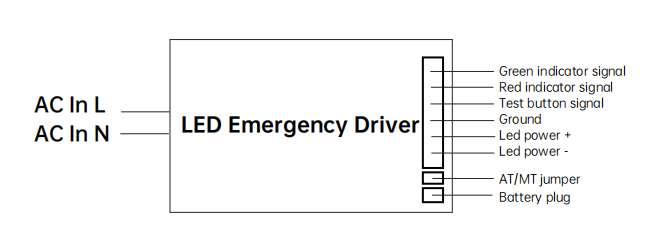

Wiring diagram
Luminaire mounting space
EU version model
Compliant EUROPE standard EN 1838
Illuminance requirement:
Escape route up to 2 m wide, 1 lx on the central axis and 0.5 lx at 50% of the width.
AS/NZS version model
Compliant Australian standard AS2293.1; AS2293.3
Illuminance classification: C90:D50 C0:D50
Horizontal illuminance at floor level is not less than 0.2 lx.
